Bay Star Specifications

The 2019 Bay Star is fitted with a cargo liner, 5/8” floor decking, and 5/8” bead foam. Lengths, heights, widths, and dry weights are approximate. Weight will vary based on optional equipment added to the base weights listed below. Specifications are supplied by each chassis manufacturer.

In addition, every Bay Star Sport is supported by a proven Ford® F-53 chassis, ranging from 22-24,000 lb. GVWR. A 320-horsepower Ford® V10 gas engine comes standard.

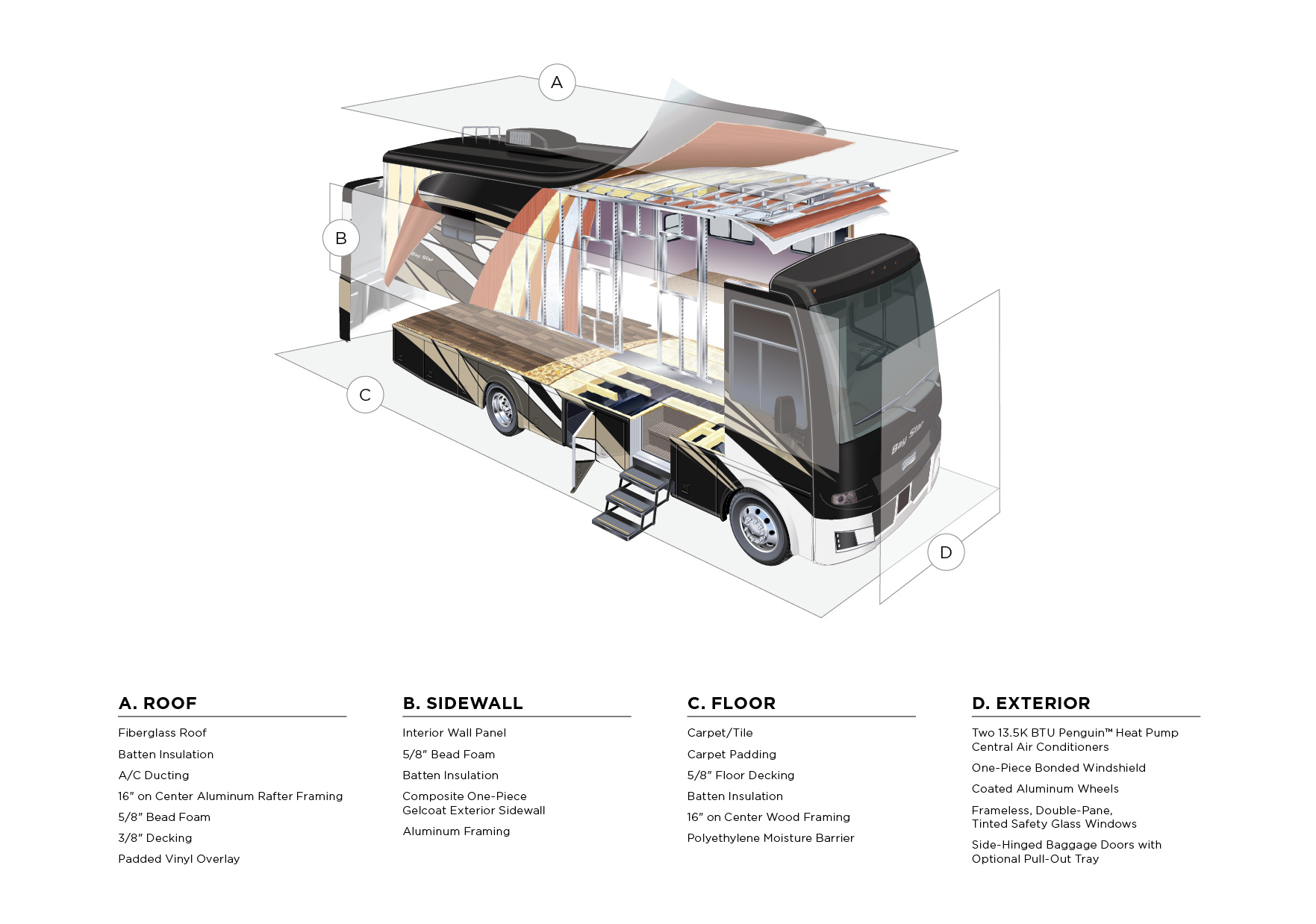

BAY STAR CONSTRUCTION

Like a fine home, the 2019 Bay Star is framed 16 inches on center and is covered by a BriteTEK™ roof with walkable decking. Click or tap for more details.

Chassis: Ford® F-53
ford

Floor Plan App. Overall Length App. Overall Height Interior Height Interior Width Width Grey Sewage Water Propane Furnace Water Heater # of House Batteries Total House Battery Amp Hours
3014 30FT 11IN 12FT 08IN 80 95.5 101.5 60 gal. 40 gal. 75 gal. gal. 40000 btu 6 2
3124 31FT 11IN 12FT 08IN 80 95.5 101.5 60 gal. 40 gal. 75 gal. gal. 40000 btu 6 2
3226 32FT 11IN 12FT 08IN 80 95.5 101.5 60 gal. 40 gal. 75 gal. gal. 40000 btu 6 2
3401 34FT 11IN 12FT 08IN 80 95.5 101.5 60 gal. 40 gal. 75 gal. gal. 40000 btu 6 2
3408 34FT 11IN 12FT 08IN 80 95.5 101.5 60 gal. 40 gal. 75 gal. gal. 40000 btu 6 2
3414 34FT 11IN 12FT 08IN 80 95.5 101.5 60 gal. 40 gal. 75 gal. gal. 40000 btu 6 2
3419 34FT 11IN 12FT 08IN 80 95.5 101.5 60 gal. 40 gal. 75 gal. gal. 40000 btu 6 2
3609 36FT 11IN 12FT 08IN 80 95.5 101.5 60 gal. 92 gal. 75 gal. gal. 40000 btu 6 2
3626 36FT 11IN 12FT 08IN 80 95.5 101.5 60 gal. 40 gal. 75 gal. gal. 40000 btu 6 2
3628 36FT 11IN 12FT 08IN 80 95.5 101.5 60 gal. 40 gal. 75 gal. gal. 40000 btu 6 2
Floor Plan Engine Brand Engine Model Engine HP Engine Torque Engine Displ. Engine Displ. UOM Axle Ratio Fuel Cap. Transmission Brand Transmission Model Transmission Speeds DEF Tank Cap. Wheel Base Tire Brand Rear Hitch Rating Flat Rear Hitch Rating Trailer Rear Hitch Rating Vertical Wheel Cut Angle Front Wheel Cut Angle Tag Axle Front GAWR Rear GAWR Tag GAWR GVWR GCWR App. UVW App. NCC
3014 Ford Triton V10 320 457 6.8 Liters 5.38 80 gal. Ford TorqShift 6R140 6 200 Michelin 5000 5000 500 8000 lb. 15000 lb. lb. 22000 lb. 26000 lb. 18550 lb. 3450 lb.
3124 Ford Triton V10 320 457 6.8 Liters 5.38 80 gal. Ford TorqShift 6R140 6 200 Michelin 5000 5000 500 8000 lb. 15000 lb. lb. 22000 lb. 26000 lb. 18850 lb. 3150 lb.
3226 Ford Triton V10 320 457 6.8 Liters 5.38 80 gal. Ford TorqShift 6R140 6 208 Michelin 5000 5000 500 8000 lb. 15000 lb. lb. 22000 lb. 26000 lb. 19035 lb. 2965 lb.
3401 Ford Triton V10 320 457 6.8 Liters 5.38 80 gal. Ford TorqShift 6R140 6 228 Michelin 5000 5000 500 9000 lb. 15500 lb. lb. 24000 lb. 30000 lb. 20340 lb. 3660 lb.
3408 Ford Triton V10 320 457 6.8 Liters 5.38 80 gal. Ford TorqShift 6R140 6 224 Michelin 5000 5000 500 9000 lb. 15500 lb. lb. 24000 lb. 30000 lb. 20975 lb. 3025 lb.
3414 Ford Triton V10 320 457 6.8 Liters 5.83 80 gal. Ford TorqShift 6R140 6 228 Michelin 5000 5000 500 9000 lb. 15500 lb. lb. 24000 lb. 30000 lb. 20160 lb. 3840 lb.
3419 Ford Triton V10 320 457 6.8 Liters 5.38 80 gal. Ford TorqShift 6R140 6 234 Michelin 5000 5000 500 9000 lb. 15500 lb. lb. 24000 lb. 30000 lb. 20900 lb. 3100 lb.
3609 Ford Triton V10 320 457 6.8 Liters 6.17 80 gal. Ford TorqShift 6R140 6 242 Michelin 5000 5000 500 9000 lb. 15500 lb. lb. 24000 lb. 30000 lb. 20545 lb. 3455 lb.
3626 Ford Triton V10 320 457 6.8 Liters 6.17 80 gal. Ford TorqShift 6R140 6 246 Michelin 5000 5000 500 9000 lb. 15500 lb. lb. 24000 lb. 30000 lb. 21775 lb. 2225 lb.
3628 Ford Triton V10 320 457 6.8 Liters 6.17 80 gal. Ford TorqShift 6R140 6 252 Michelin 5000 5000 500 9000 lb. 15500 lb. lb. 24000 lb. 30000 lb. 21765 lb. 2235 lb.

Starting at $ 146,846 USD
