Travel without compromise in the industry’s most thoughtfully designed, accessible Class A gas coach. Your independence is assured inside floor plan 3811 with the standard BraunAbility lift, while the wheelchair-friendly layout ensures comfortable navigation throughout. Every control placement, appliance height, and amenity has been carefully considered to provide you with first-class comfort. There’s added space around the bed for ease of transfer—and optional powered adjustable height base as well. Experience the freedom to travel your way, with all the refined touches you deserve.

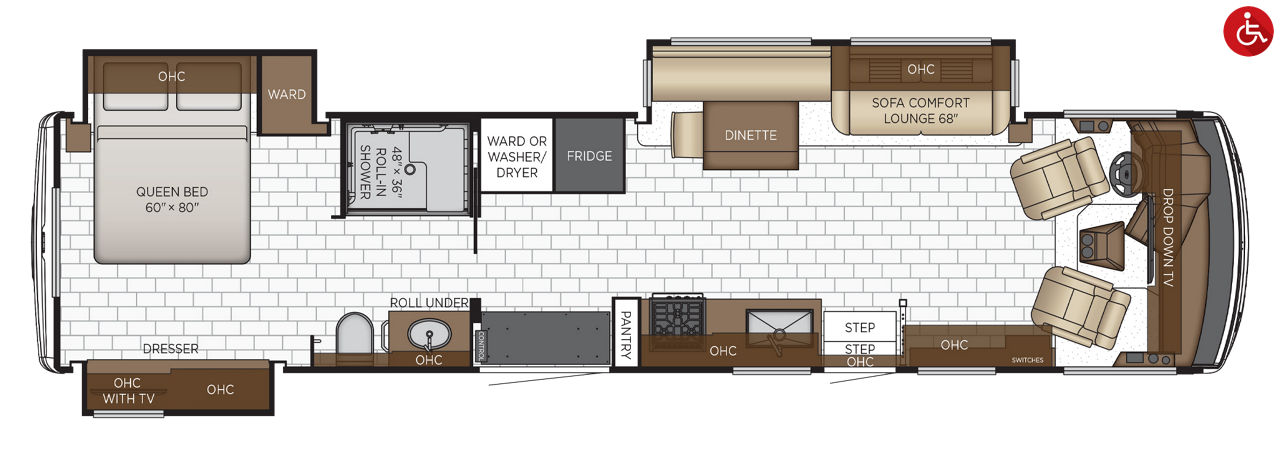

Bay Star Floor Plan
3811
| Ford | |
|---|---|
| Engine Brand | Ford |
| Engine HP | 335 |
| Engine Torque Rating | 468 |
| Engine Disp. (In Liters) | 7.3 |
| Xmission Brand | Ford |
| Xmission Speeds | 6 |
| Xmission Model | TorqShift 6R140 |
| Axle Ratio | 6.14 |
| Fuel Cap. | 80 |
| DEF Tank Cap. | 0 |
| Wheel Base | 254 |
| Tire Brand | Michelin |
| Rear Hitch Rating Flat | 5000 |
| Rear Hitch Rating Trailer | 5000 |
| Rear Hitch Rating Vertical | 500 |
| Wheel Cut Angle Front | 0 |
| Wheel Cut Angle Tag Axle | 0 |
| Front GAWR | 9000 |
| Rear GAWR | 17500 |
| Tag GAWR | 0 |
| GVWR | 26000 |
| GCWR | 30000 |
| APP. UVW | 22850 |
| APP. NCC | 3150 |
| Length | 38FT 11IN |
| Width | 101.5 |
| Height | 12FT 10IN |
| Interior Width | 95.5 |
| Interior Height | 84 |
| Grey | 60 |
| Sewage | 40 |
| Water | 75 |
| Propane | 25 |
| Furnace | 42000 |
| Water Heater | 6 |
| # of House Batteries (Standard) | 6 |
| Total House Battery Amp Hour (Standard) | 600 |
