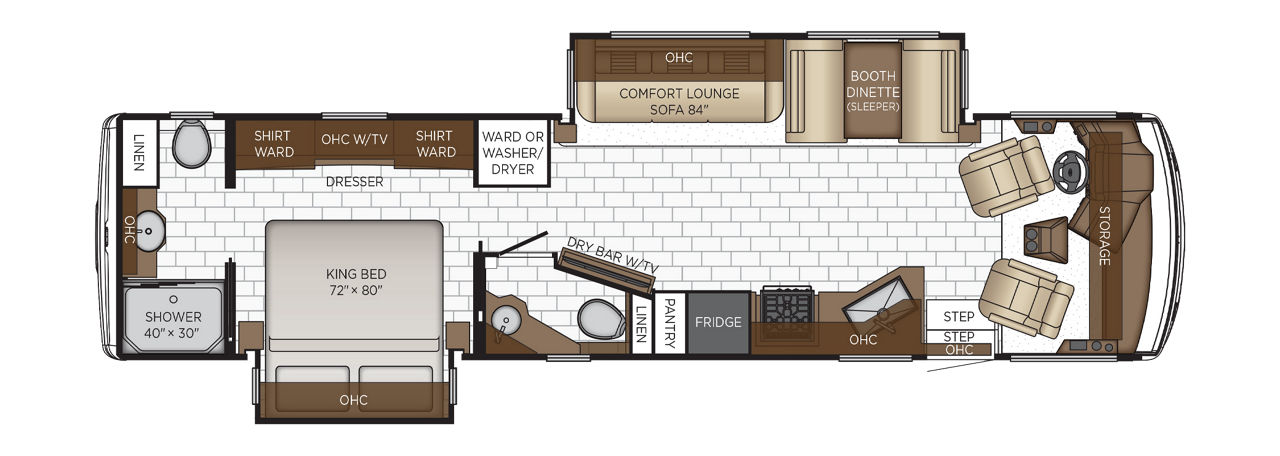

Bay Star Floor Plan

3609

Live distinctively in an iconic bath and a half layout that gives you a unique, spacious living experience. Floor plan 3609, a beloved classic, returns reimagined for your modern lifestyle. Position yourself at the heart of innovative design with the front-kitchen configuration that places your TV midship—directly across from your comfortable sofa. Enhance your relaxation with a dry bar or optional fireplace below, delivering the classic comfort you crave with contemporary amenities you deserve. Retreat to your private king suite featuring a luxurious king-size bed and spacious 40" x 30" shower, with the convenience of an optional washer/dryer that keeps you traveling longer with less hassle.

Ford
Engine Brand Ford
Engine HP 335
Engine Torque Rating 468
Engine Disp. (In Liters) 7.3
Xmission Brand Ford
Xmission Speeds 6
Xmission Model TorqShift 6R140
Axle Ratio 6.14
Fuel Cap. 80
DEF Tank Cap. 0
Wheel Base 242
Tire Brand Michelin
Rear Hitch Rating Flat 5000
Rear Hitch Rating Trailer 5000
Rear Hitch Rating Vertical 500
Wheel Cut Angle Front 0
Wheel Cut Angle Tag Axle 0
Front GAWR 9000
Rear GAWR 17500
Tag GAWR 0
GVWR 26000
GCWR 30000
APP. UVW 22700
APP. NCC 3300
Length 36FT 11IN
Width 101.5
Height 12FT 10IN
Interior Width 95.5
Interior Height 84
Grey 60
Sewage 40
Water 75
Propane 25
Furnace 35000
Water Heater 6
# of House Batteries (Standard) 6
Total House Battery Amp Hour (Standard) 600
