SUPER STAR CONSTRUCTION

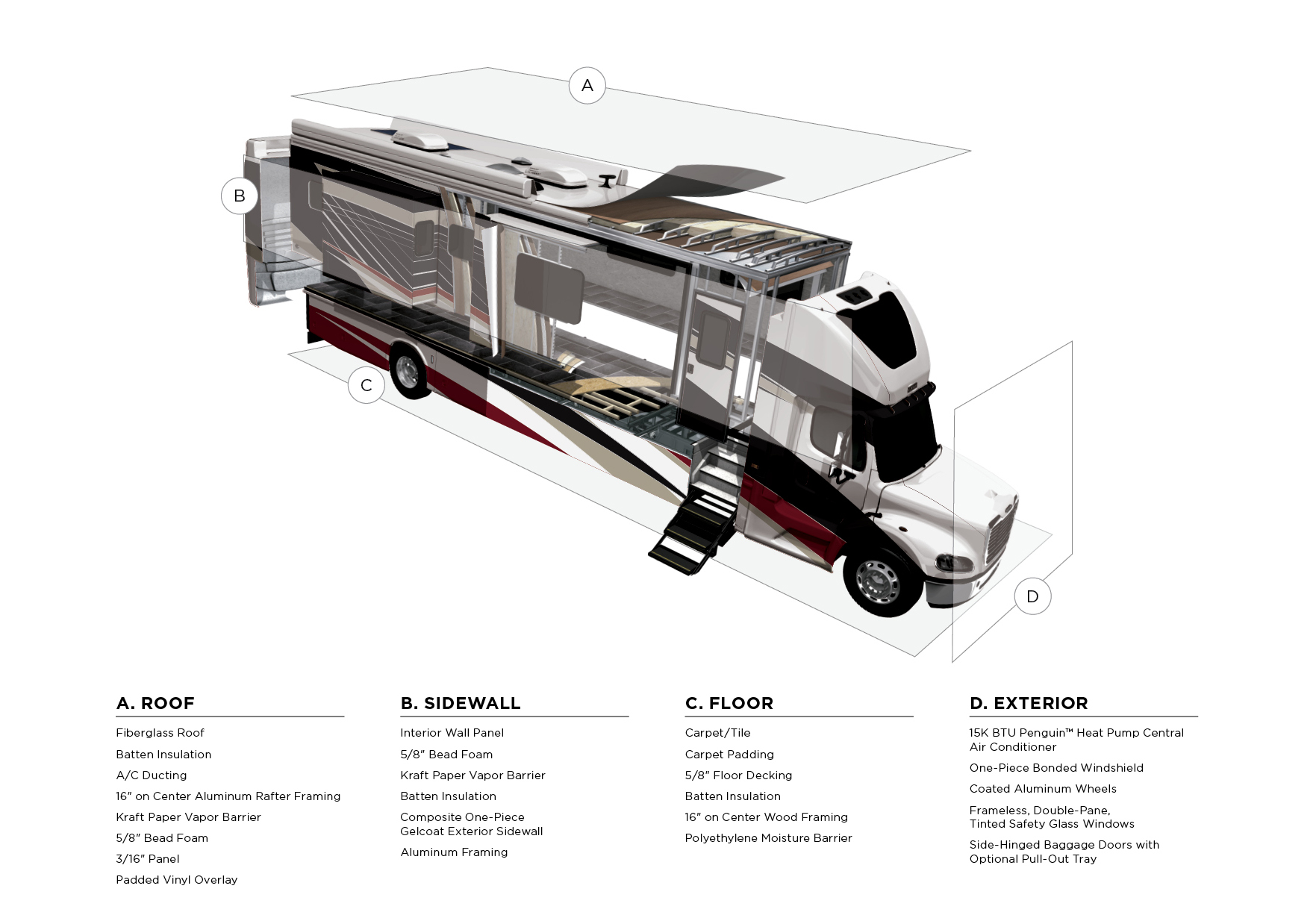

Like a fine home, the 2021 Super Star is framed 16 inches on center, and is covered by a Fiberglass roof and an integrated gutter rail. Click or tap for more details.
Chassis: Freightliner® M-2 106
The 2021 Super Star is fitted with a cargo liner, 5/8” floor decking, and 5/8” bead foam. Lengths, widths, and dry weights are approximate. Weight will vary based on optional equipment added to the base weights listed below. Specifications are supplied by each chassis manufacturer. Each Super Star is built on a Freightliner® M-2 106 chassis with a 350-horsepower Cummins® diesel engine.
Like a fine home, the 2021 Super Star is framed 16 inches on center, and is covered by a Fiberglass roof and an integrated gutter rail. Click or tap for more details.
Chassis: Freightliner® M-2 106
| Floor Plan | Length | Width | Height | Int Width | Int Height | Grey | Sewage | Water | Propane | Furnace | Water Heater | # of House Batteries (Standard) | Total House Battery Amp Hour (Standard) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3746 | 37' 11" | 101.5" | 13' | 95.5" | 83" | 60 gal. | 40 gal. | 150 gal. | 32 gal. | 40,000 btu | 10 | 4 | 400 |
| 4051 | 40' 11" | 101.5" | 13' | 95.5" | 83" | 60 gal. | 40 gal. | 150 gal. | 32 gal. | 40,000 btu | 10 | 4 | 400 |
| 4058 | 40' 11" | 101.5" | 13' | 95.5" | 83" | 60 gal. | 40 gal. | 150 gal. | 32 gal. | 40,000 btu | 10 | 4 | 400 |
| 4061 | 40' 11" | 101.5" | 13' | 95.5" | 83" | 60 gal. | 40 gal. | 150 gal. | 32 gal. | 40,000 btu | 10 | 4 | 400 |
| Floor Plan | Year | Brand | Type | Floorplan | Engine Brand | Engine Model | Engine HP | Engine Torque Rating | Engine Displ. | Engine Displ. UOM | Axle Ratio | Xmission Brand | Xmission Model | Xmission Speeds | Fuel Cap. | Def Cap. | Wheel Base | Tire Brand | Hitch Flat Tow | Hitch Trailer Tow | Hitch Vertical Load | Wheel Cut Front | Wheel Cut Tag | Front GAWR | Rear GAWR | Tag GAWR | GVWR | GCWR | APP. UVW | APP. NCC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3746 | 2021 | SS | CC | 3746 | Cummins | L | 350 | 1150 | 8.9 | Liters | 4.89 | Allison | 3200 T | 6 | 100 gal. | 6 | 309 | Michelin | 20000 lb. | 20000 lb. | 2000 lb. | 52 | n/a | 16000 lb. | 24000 lb. | n/a | 40000 lb. | 60000 lb. | 31100 lb. | 8900 lb. |
| 4051 | 2021 | SS | CC | 4051 | Cummins | L | 350 | 1150 | 8.9 | Liters | 4.89 | Allison | 3200 T | 6 | 100 gal. | 6 | 341 | Michelin | 20000 lb. | 20000 lb. | 2000 lb. | 52 | n/a | 16000 lb. | 24000 lb. | n/a | 40000 lb. | 60000 lb. | 32500 lb. | 7500 lb. |
| 4058 | 2021 | SS | CC | 4058 | Cummins | L | 350 | 1150 | 8.9 | Liters | 4.89 | Allison | 3200 T | 6 | 100 gal. | 6 | 341 | Michelin | 20000 lb. | 20000 lb. | 2000 lb. | 52 | n/a | 16000 lb. | 24000 lb. | n/a | 40000 lb. | 60000 lb. | 33300 lb. | 6700 lb. |
| 4061 | 2021 | SS | CC | 4061 | Cummins | L | 350 | 1150 | 8.9 | Liters | 4.89 | Allison | 3200 T | 6 | 100 gal. | 6 | 341 | Michelin | 20000 lb. | 20000 lb. | 2000 lb. | 52 | n/a | 16000 lb. | 24000 lb. | n/a | 40000 lb. | 60000 lb. | 33500 lb. | 6500 lb. |
