Super Star Floor Plan

4140

Power and family‑friendly comfort come together in the 2027 Newmar Super Star Floor Plan 4140. Built on the robust Freightliner® M2 112 chassis with 450 horsepower and 20,000 lbs. of towing capacity, it’s designed for families with ambitious travel plans. A spacious bunk area with two 30" x 72" bunks and a nearby midship bath keeps guests comfortable, while parents enjoy a private king suite with optional washer and dryer. The inviting living area with a patio‑side dinette and onboard Starlink connectivity makes it easy to gather, work, and stay connected wherever the journey leads.

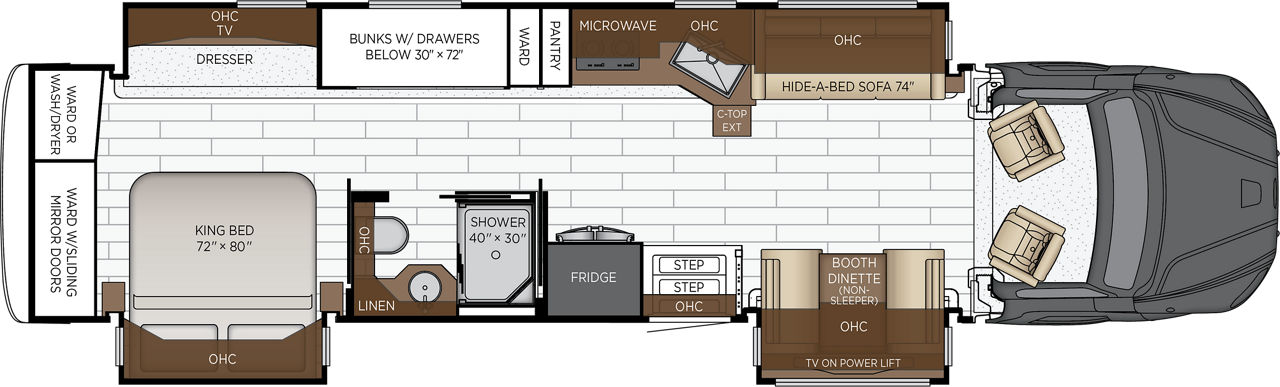

2027 Super Star 4140 Floorplan
Freightliner
Engine Brand Cummins
Engine Model L
Engine HP 450
Engine Torque Rating 1150
Engine Disp. (In Liters) 8.9
Transmission Brand Allison
Transmission Speeds 6
Transmission Model 3200 Trv
Axle Ratio 3.91
Fuel Cap. 100
DEF Tank Cap. 6
Wheel Base 345
Tire Brand Michelin
Rear Hitch Rating Flat 20000
Rear Hitch Rating Trailer 20000
Rear Hitch Rating Vertical 2000
Wheel Cut Angle Front 45.0
Wheel Cut Angle Tag Axle 0.0
Front GAWR 18000
Rear GAWR 25000
Tag GAWR 0
GVWR 43000
GCWR 60000
APP. UVW 34500
APP. NCC 8500
Width 101.5
Interior Width 95.5
Interior Height 83
Grey 60.00
Sewage 40.00
Water 150.00
Propane 0.00
Furnace 50000
Water Heater 0.00
# of House Batteries (Standard) 8
Total House Battery Amp Hour (Standard) 800
No. of Slides 3
Sleeps Up To 6
Bed Size King
No. of Baths 1.0
Bunks Yes
Handicap Accessible No
Washer/Dryer Optional
Fireplace No
Exterior Entertainment Yes
Exterior Freezer Optional
Artisan Series Custom Paint Process No

Features and specifications are subject to change without notice. Please consult your dealer for the most current information.
