Canyon Star Specifications

The 2021 Canyon Star is fitted with a cargo liner, 5/8” floor decking, and 5/8” bead foam. Lengths, heights, widths, and dry weights are approximate. Weight will vary based on optional equipment added to the base weights listed below. Specifications are supplied by each chassis manufacturer.

In addition, every Canyon Star is built on a Freightliner® MC Chassis. A 340 horsepower Cummins “B” diesel engine comes standard.

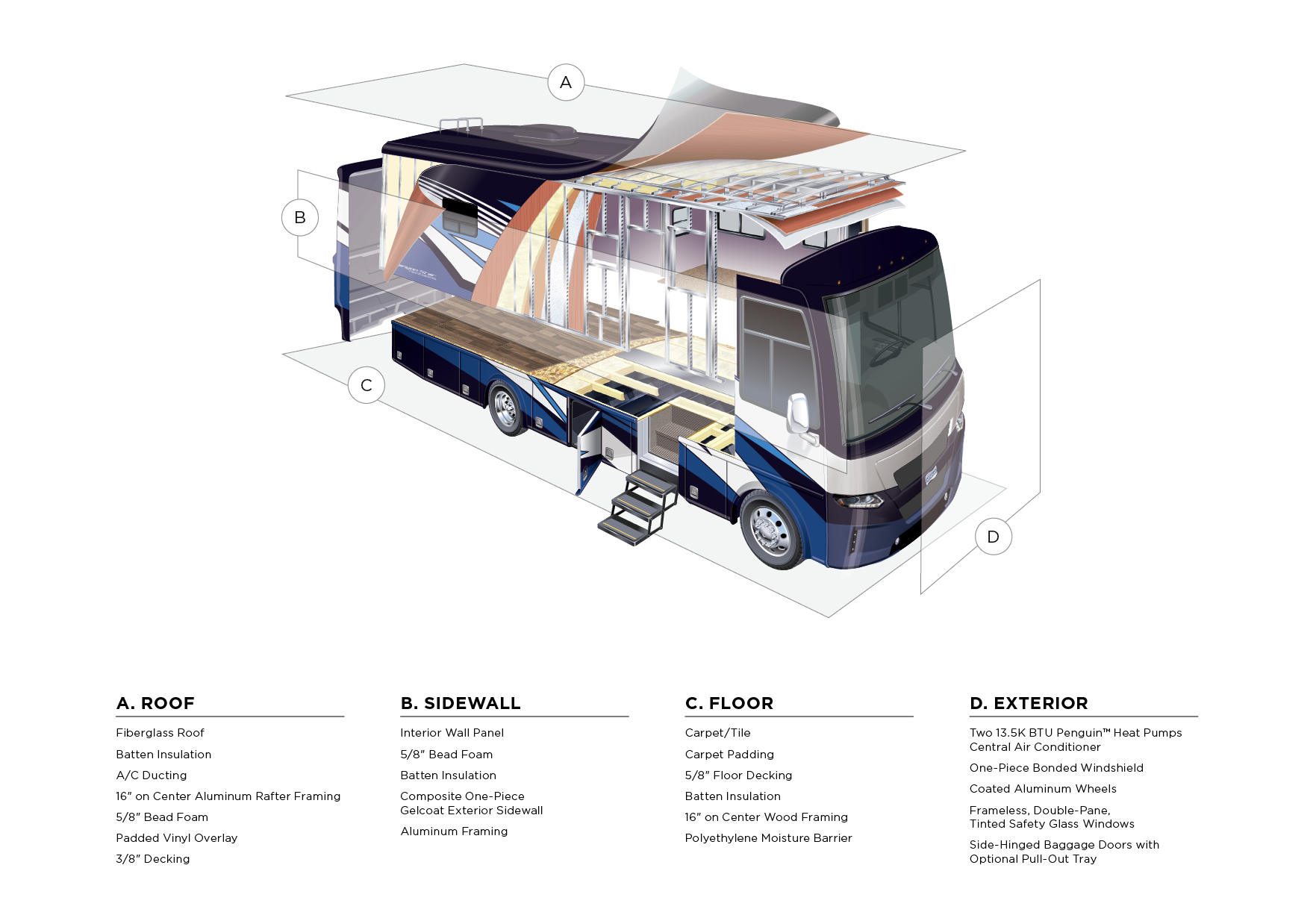

CANYON STAR CONSTRUCTION

Like a fine home, the 2021 Canyon Star is framed 16 inches on center and is covered by a BriteTEK roof with walkable decking. Click or tap for more details.

Chassis: Freightliner® MC

Floor Plan Length Width Height Int Width Int Height Grey Sewage Water Propane Furnace Water Heater # of House Batteries (Standard) Total House Battery Amp Hour (Standard)
3513 35' 11" 101.5" 12' 11" 95.5" 84" 60 gal. 40 gal. 75 gal. 25 gal. 40000 btu 10 2 100
3710 37' 11" 101.5" 12' 11" 95.5" 84" 60 gal. 92 gal. 75 gal. 25 gal. 40000 btu 10 2 100
3719 37' 11" 101.5" 12' 11" 95.5" 84" 60 gal. 40 gal. 75 gal. 25 gal. 40000 btu 10 2 100
3722 37' 11" 101.5" 12' 11" 95.5" 84" 60 gal. 40 gal. 75 gal. 25 gal. 40000 btu 10 2 100
3747 37' 11" 101.5" 12' 11" 95.5" 84" 60 gal. 92 gal. 75 gal. 25 gal. 40000 btu 10 2 100
3911 39' 11" 101.5" 12' 11" 95.5" 84" 60 gal. 40 gal. 75 gal. 25 gal. 40000 btu 10 2 100
3927 39' 11" 101.5" 12' 11" 95.5" 84" 60 gal. 40 gal. 75 gal. 25 gal. 40000 btu n/a 2 100
3929 39' 11" 101.5" 12' 11" 95.5" 84" 60 gal. 92 gal. 75 gal. 25 gal. 40000 btu 10 2 100
Floor Plan Year Brand Type Floor Plan Engine Brand Engine HP Engine Torque Rating Engine Displ. Engine Displ. UOM Axle Ratio Xmission Model Xmission Speeds Fuel Cap. Wheelbase Tire Brand Rear Hitch Rating Flat Rear Hitch Rating Trailer Rear Hitch Rating Vertical Front GAWR Rear GAWR GVWR GCWR APP. UVW APP. NCC
3513 2021 CS CA 3513 Cummins 340 700 6.7 Liters 5.13 2500 M 5 80 gal. 246" Michelin 6000 lb. 6000 lb. 600 lb. 12000 lb. 20000 lb. 30000 lb. 33000 lb. 25750 lb. 4250 lb.
3710 2021 CS CA 3710 Cummins 340 700 6.7 Liters 5.13 2500 M 5 80 gal. 256" Michelin 6000 lb. 6000 lb. 600 lb. 12000 lb. 20000 lb. 30000 lb. 33000 lb. 25460 lb. 4540 lb.
3719 2021 CS CA 3719 Cummins 340 700 6.7 Liters 5.13 2500 M 5 80 gal. 262" Michelin 6000 lb. 6000 lb. 600 lb. 12000 lb. 20000 lb. 30000 lb. 33000 lb. 26350 lb. 3650 lb.
3722 2021 CS CA 3722 Cummins 340 700 6.7 Liters 5.13 2500 M 5 80 gal. 262" Michelin 6000 lb. 6000 lb. 600 lb. 12000 lb. 20000 lb. 30000 lb. 33000 lb. 26460 lb. 3540 lb.
3747 2021 CS CA 3747 Cummins 340 700 6.7 Liters 5.13 2500 M 5 80 gal. 256" Michelin 6000 lb. 6000 lb. 600 lb. 12000 lb. 20000 lb. 30000 lb. 33000 lb. 25870 lb. 4130 lb.
3911 2021 CS CA 3911 Cummins 340 700 6.7 Liters 5.13 2500 M 5 80 gal. 274" Michelin 6000 lb. 6000 lb. 600 lb. 12000 lb. 20000 lb. 30000 lb. 33000 lb. 26100 lb. 3900 lb.
3927 2021 CS CA 3927 Cummins 340 700 6.7 Liters 5.13 2500 M 5 80 gal. 274" Michelin 6000 lb. 6000 lb. 600 lb. 12000 lb. 20000 lb. 30000 lb. 33000 lb. 24600 lb. 5400 lb.
3929 2021 CS CA 3929 Cummins 340 700 6.7 Liters 5.13 2500 M 5 80 gal. 274" Michelin 6000 lb. 6000 lb. 600 lb. 12000 lb. 20000 lb. 30000 lb. 33000 lb. 27370 lb. 2630 lb.

Starting at $238,434 USD
