Canyon Star Floor Plan

3947

Floor Plan 3947 delivers exceptional flexibility for active families and adventure‑seekers. A spacious 10' garage transforms easily into toy storage, a built‑in patio with awning and lighting, or a hybrid of both, while optional drop‑down bunks add kid‑friendly sleeping space without sacrificing daytime living. With a full midship bath, open full‑wall slide, and a private queen‑bedroom retreat, this floor plan is perfect for those bringing their toys, craving an integrated patio, and needing extra bunk space.

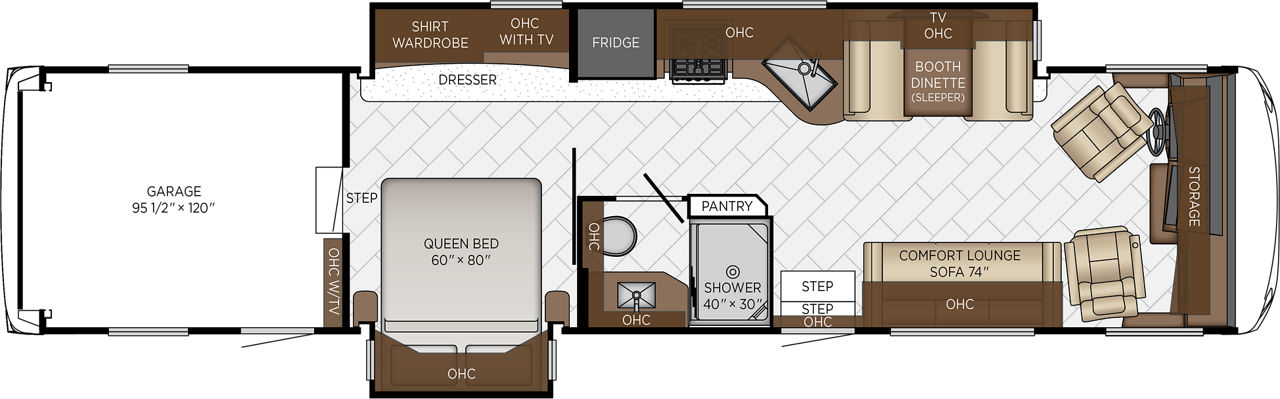

2027 Canyon Star 3947 Floorplan
Freightliner
Engine Brand Cummins
Engine HP 340
Engine Torque Rating 700
Engine Disp. (In Liters) 6.7
Transmission Brand Allison
Transmission Speeds 5
Transmission Model 2500 Mh Auto
Axle Ratio 5.13
Fuel Cap. 80
DEF Tank Cap. 10
Wheel Base 274
Tire Brand Michelin
Rear Hitch Rating Flat 6000
Rear Hitch Rating Trailer 6000
Rear Hitch Rating Vertical 600
Wheel Cut Angle Front 53.0
Wheel Cut Angle Tag Axle 0.0
Front GAWR 12000
Rear GAWR 20000
Tag GAWR 0
GVWR 32000
GCWR 33000
APP. UVW 25950
APP. NCC 6050
Width 101.5
Interior Width 95.5
Interior Height 84
Grey 60.00
Sewage 40.00
Water 75.00
Propane 25.00
Furnace 35000
Water Heater 0.00
# of House Batteries (Standard) 6
Total House Battery Amp Hour (Standard) 600
No. of Slides 2
Sleeps Up To 6
Bed Size Queen
No. of Baths 1.0
Bunks Yes
Drop Down Bunks Optional
Handicap Accessible No
Washer/Dryer Optional
Fireplace No
Exterior Entertainment Optional
Exterior Freezer No
Artisan Series Custom Paint Process No

View other Floor Plans Features:

Features and specifications are subject to change without notice. Please consult your dealer for the most current information.
