Explore new destinations without limitation in Floor Plan 3809. The versatile 38' length provides ideal access to national parks and game day tailgating areas with length restrictions, while the thoughtful half-bath in the main living area enhances your ability to host friends campside. Robust furniture options and entertainment features adapt to your preferences, ensuring your coach becomes the perfect basecamp for every adventure.

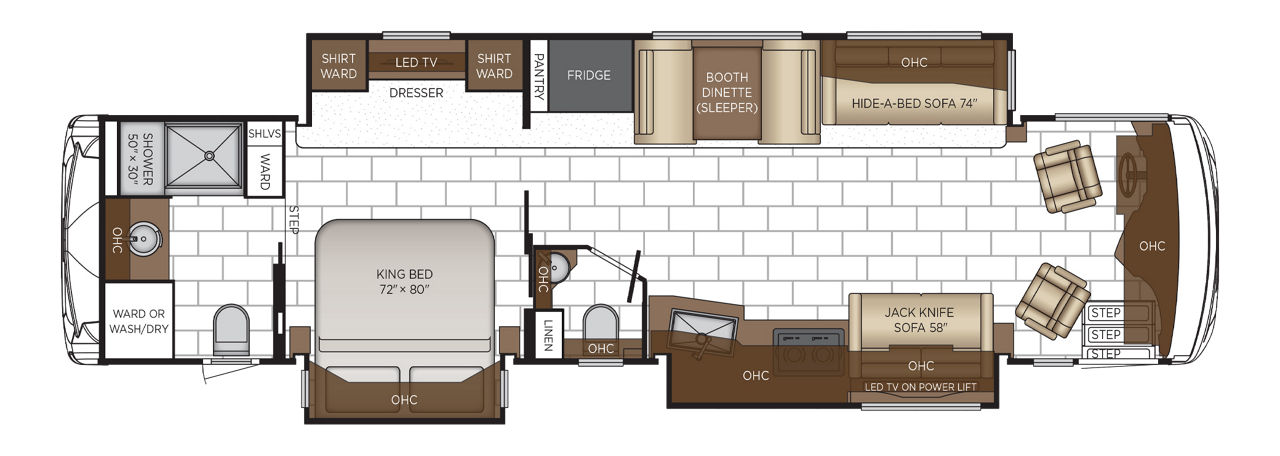

Ventana Floor Plan
3809
| Spartan | |
|---|---|
| Engine Brand | Cummins |
| Engine Model | L |
| Engine HP | 380 |
| Engine Torque Rating | 1150 |
| Engine Disp. (In Liters) | 8.9 |
| Xmission Brand | Allison |
| Xmission Speeds | 6 |
| Xmission Model | 3000MH |
| Axle Ratio | 4.78 |
| Fuel Cap. | 100 |
| DEF Tank Cap. | 10 |
| Wheel Base | 248 |
| Tire Brand | Michelin |
| Rear Hitch Rating Flat | 10000 |
| Rear Hitch Rating Trailer | 5000 |
| Rear Hitch Rating Vertical | 500 |
| Wheel Cut Angle Front | 55 |
| Wheel Cut Angle Tag Axle | 0 |
| Front GAWR | 14600 |
| Rear GAWR | 24000 |
| Tag GAWR | 0 |
| GVWR | 38600 |
| GCWR | 48600 |
| APP. UVW | 32700 |
| APP. NCC | 5900 |
| Freightliner | |
|---|---|
| Engine Brand | Cummins |
| Engine Model | L |
| Engine HP | 380 |
| Engine Torque Rating | 1150 |
| Engine Disp. (In Liters) | 8.9 |
| Xmission Brand | Allison |
| Xmission Speeds | 6 |
| Xmission Model | 3000MH |
| Axle Ratio | 4.78 |
| Fuel Cap. | 100 |
| DEF Tank Cap. | 10 |
| Wheel Base | 248 |
| Tire Brand | Michelin |
| Rear Hitch Rating Flat | 10000 |
| Rear Hitch Rating Trailer | 5000 |
| Rear Hitch Rating Vertical | 500 |
| Wheel Cut Angle Front | 51 |
| Wheel Cut Angle Tag Axle | 0 |
| Front GAWR | 15000 |
| Rear GAWR | 24000 |
| Tag GAWR | 0 |
| GVWR | 39000 |
| GCWR | 49000 |
| APP. UVW | 32950 |
| APP. NCC | 6050 |
| Length | 38FT 10IN |
| Width | 101.5 |
| Height | 12FT 10IN |
| Interior Width | 95.5 |
| Interior Height | 83 |
| Grey | 75 |
| Sewage | 55 |
| Water | 105 |
| Propane | 0 |
| Furnace | 50000 |
| Water Heater | 0 |
| # of House Batteries (Standard) | 8 |
| Total House Battery Amp Hour (Standard) | 800 |
