Travel with true accessibility in Floor Plan 4011. This innovative floor plan features wheelchair-friendly pathways throughout, appropriately positioned controls and appliances, and the standard BraunAbility lift for effortless entry and exit. The thoughtfully configured bedroom with extra transfer space ensures everyone can enjoy the freedom of diesel travel. This is where possibilities expand.

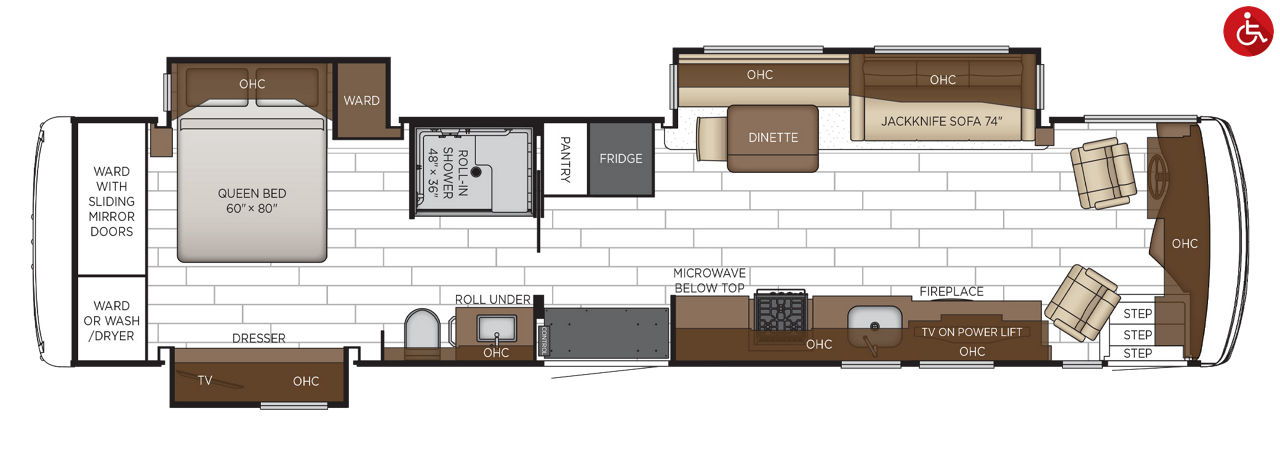

Northern Star Floor Plan
4011
| Freightliner | |
|---|---|
| Engine Brand | Cummins |
| Engine Model | B |
| Engine HP | 360 |
| Engine Torque Rating | 800 |
| Engine Disp. (In Liters) | 6.7 |
| Xmission Brand | Allison |
| Xmission Speeds | 6 |
| Xmission Model | 3000MH |
| Axle Ratio | 4.78 |
| Fuel Cap. | 100 |
| DEF Tank Cap. | 10 |
| Wheel Base | 276 |
| Tire Brand | Michelin |
| Rear Hitch Rating Flat | 10000 |
| Rear Hitch Rating Trailer | 5000 |
| Rear Hitch Rating Vertical | 500 |
| Wheel Cut Angle Front | 51 |
| Wheel Cut Angle Tag Axle | 0 |
| Front GAWR | 15000 |
| Rear GAWR | 24000 |
| Tag GAWR | 0 |
| GVWR | 39000 |
| GCWR | 49000 |
| APP. UVW | 30400 |
| APP. NCC | 8600 |
| Length | 40FT 10IN |
| Width | 101.5 |
| Height | 12FT 11IN |
| Interior Width | 95.5 |
| Interior Height | 83 |
| Grey | 65 |
| Sewage | 45 |
| Water | 105 |
| Propane | 32 |
| Furnace | 54000 |
| Water Heater | 10 |
| # of House Batteries (Standard) | 4 |
| Total House Battery Amp Hour (Standard) | 400 |
