New Aire Floor Plan

3543

Floor Plan 3543 turns every destination into an inviting social retreat, blending refined comfort with exceptional maneuverability in a 35‑foot design. A patio‑side dinette offers stunning views for shared meals, while the elegant living area and built‑in dry bar make hosting effortless. Perfect for discerning couples who value elevated luxury, easy navigation, and unforgettable patio‑side entertaining—especially in national parks or space‑constrained destinations.

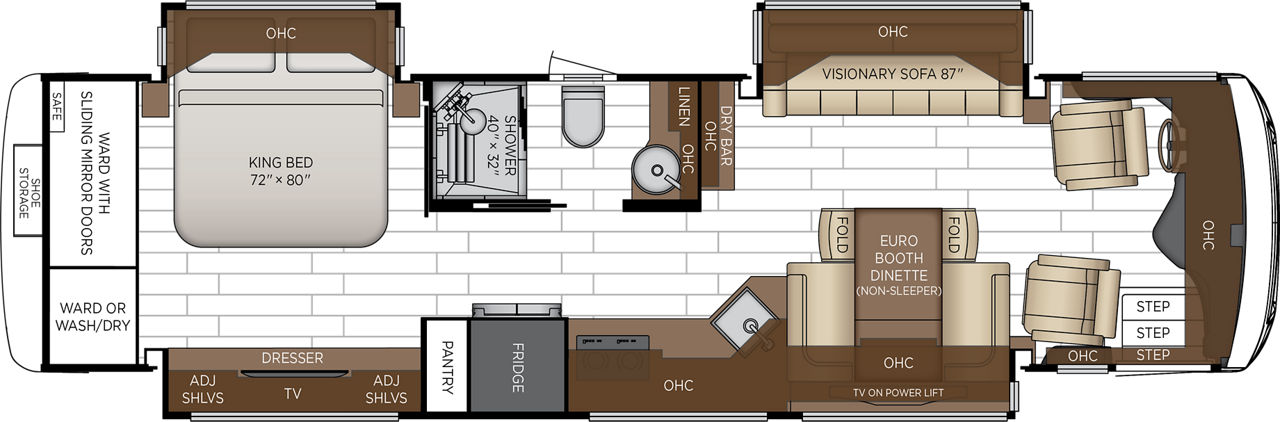

2027 New Aire 3543 Floorplan
Freightliner
Engine Brand Cummins
Engine Model L
Engine HP 450
Engine Torque Rating 1250
Engine Disp. (In Liters) 8.9
Transmission Brand Allison
Transmission Speeds 6
Transmission Model 3000 Mh
Axle Ratio 4.78
Fuel Cap. 90
DEF Tank Cap. 15
Wheel Base 226
Tire Brand Michelin
Rear Hitch Rating Flat 10000
Rear Hitch Rating Trailer 5000
Rear Hitch Rating Vertical 500
Wheel Cut Angle Front 60.0
Wheel Cut Angle Tag Axle 0.0
Front GAWR 14600
Rear GAWR 24000
Tag GAWR 0
GVWR 38600
GCWR 48600
APP. UVW 33800
APP. NCC 4800
Width 101.5
Interior Width 95.5
Interior Height 81.5
Grey 60.00
Sewage 40.00
Water 105.00
Propane 0.00
Furnace 50000
Water Heater 0.00
# of House Batteries (Standard) 2
Total House Battery Amp Hour (Standard) 640
No. of Slides 3
Sleeps Up To 4
Bed Size King
No. of Baths 1.0
Bunks No
Drop Down Bunks No
Handicap Accessible No
Washer/Dryer Yes
Fireplace Optional
Exterior Entertainment Yes
Exterior Freezer Optional
Artisan Series Custom Paint Process No

View other Floor Plans Features:

Features and specifications are subject to change without notice. Please consult your dealer for the most current information.
