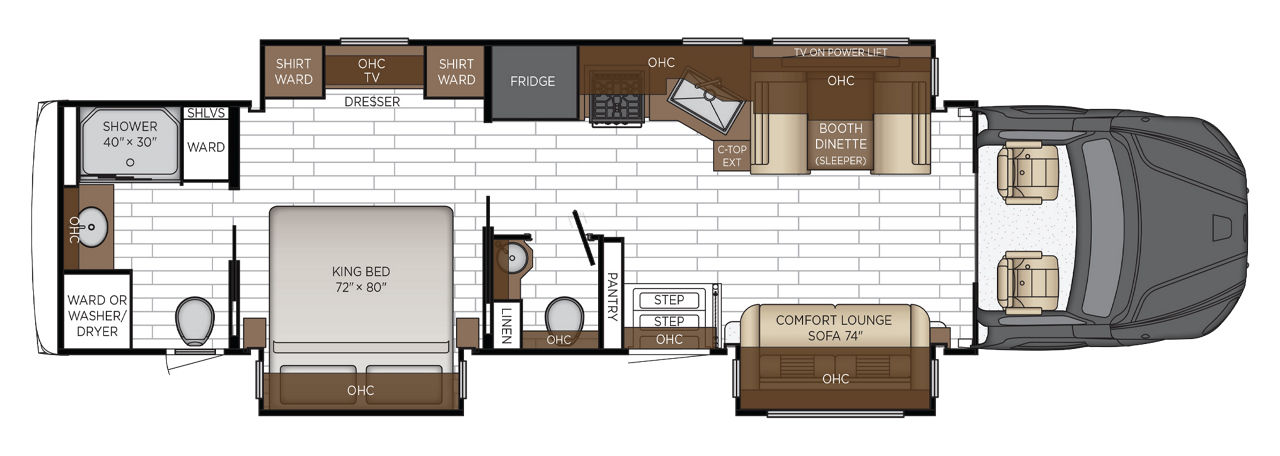

Make the most of your space. Floor plan 3948, a spacious bath and a half model, puts the full bath in the back, with a spacious shower and optional washer and dryer. The bedroom includes a king-size bed, and the midship half-bath is convenient for you and guests alike. The angled kitchen and living area are both open and inviting, so you can really stretch out and relax.
Grand Star Floor Plan
3948
| Freightliner | |
|---|---|
| Engine Brand | Cummins |
| Engine Model | B |
| Engine HP | 360 |
| Engine Torque Rating | 800 |
| Engine Disp. (In Liters) | 6.7 |
| Xmission Brand | Allison |
| Xmission Speeds | 6 |
| Xmission Model | 3000 MH |
| Axle Ratio | 4.78 |
| Fuel Cap. | 100 |
| DEF Tank Cap. | 6 |
| Wheel Base | 279 |
| Tire Brand | Michelin |
| Rear Hitch Rating Flat | 12000 |
| Rear Hitch Rating Trailer | 12000 |
| Rear Hitch Rating Vertical | 1200 |
| Wheel Cut Angle Front | 52 |
| Wheel Cut Angle Tag Axle | 0 |
| Front GAWR | 12200 |
| Rear GAWR | 23000 |
| Tag GAWR | 0 |
| GVWR | 35200 |
| GCWR | 47200 |
| APP. UVW | 28000 |
| APP. NCC | 7200 |
| Length | 39FT 11IN |
| Width | 101.5 |
| Height | 13FT 0 IN |
| Interior Width | 95.5 |
| Interior Height | 83 |
| Grey | 100 |
| Sewage | 45 |
| Water | 150 |
| Propane | 22 |
| Furnace | 35000 |
| Water Heater | 10 |
| # of House Batteries (Standard) | 4 |
| Total House Battery Amp Hour (Standard) | 400 |
