Capture the essence of every destination with Floor Plan 4521. The strategically placed patio-side dinette creates an ever-changing dining backdrop at each location, while the versatile living area with opposing sofas (or optional theater seating) provides a comfortable space for relaxation after a day of exploration. This is where scenic beauty becomes part of your daily experience.

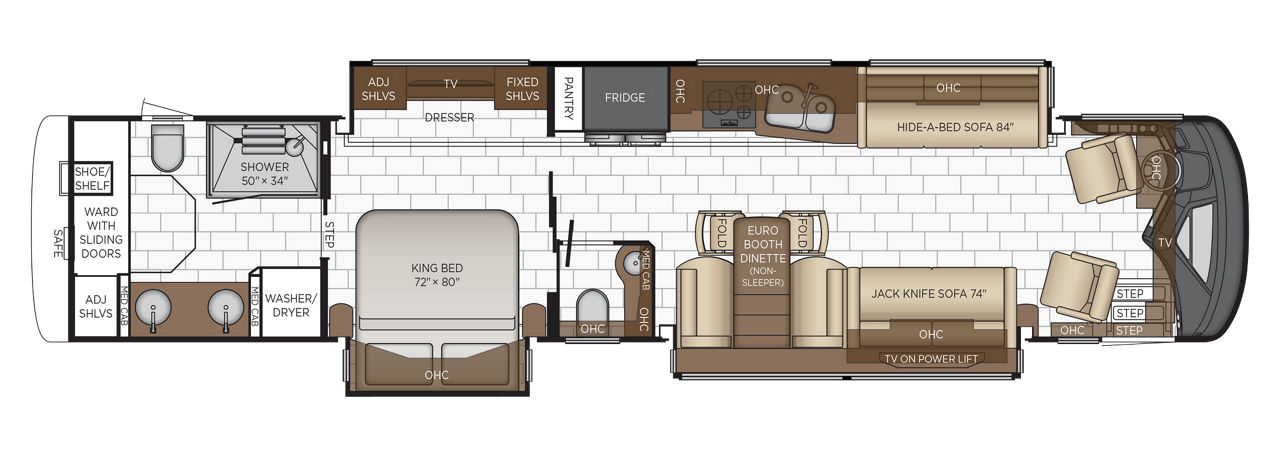

Essex Floor Plan
4521
| Spartan | |
|---|---|
| Engine Brand | Cummins |
| Engine Model | X |
| Engine HP | 605 |
| Engine Torque Rating | 1950 |
| Engine Disp. (In Liters) | 15 |
| Xmission Brand | Allison |
| Xmission Speeds | 6 |
| Xmission Model | 4000MH |
| Axle Ratio | 4.3 |
| Fuel Cap. | 150 |
| DEF Tank Cap. | 15 |
| Wheel Base | 292+TAG |
| Tire Brand | Michelin |
| Rear Hitch Rating Flat | 20000 |
| Rear Hitch Rating Trailer | 20000 |
| Rear Hitch Rating Vertical | 2000 |
| Wheel Cut Angle Front | 55 |
| Wheel Cut Angle Tag Axle | 8 |
| Front GAWR | 20000 |
| Rear GAWR | 20000 |
| Tag GAWR | 14000 |
| GVWR | 54000 |
| GCWR | 74000 |
| APP. UVW | 46100 |
| APP. NCC | 7900 |
| Freightliner | |
|---|---|
| Engine Brand | Cummins |
| Engine Model | X |
| Engine HP | 605 |
| Engine Torque Rating | 1950 |
| Engine Disp. (In Liters) | 15 |
| Xmission Brand | Allison |
| Xmission Speeds | 6 |
| Xmission Model | 4000MH |
| Axle Ratio | 4.3 |
| Fuel Cap. | 150 |
| DEF Tank Cap. | 15 |
| Wheel Base | 292+TAG |
| Tire Brand | Michelin |
| Rear Hitch Rating Flat | 20000 |
| Rear Hitch Rating Trailer | 20000 |
| Rear Hitch Rating Vertical | 2000 |
| Wheel Cut Angle Front | 55 |
| Wheel Cut Angle Tag Axle | 8 |
| Front GAWR | 20000 |
| Rear GAWR | 20000 |
| Tag GAWR | 14000 |
| GVWR | 54000 |
| GCWR | 74000 |
| APP. UVW | 46700 |
| APP. NCC | 7300 |
| Length | 44FT 10IN |
| Width | 101.5 |
| Height | 13FT 04IN |
| Interior Width | 95.5 |
| Interior Height | 83 |
| Grey | 80 |
| Sewage | 60 |
| Water | 105 |
| Propane | 0 |
| Furnace | 50000 |
| Water Heater | 0 |
| # of House Batteries (Standard) | 1 |
| Total House Battery Amp Hour (Standard) | 640 |
