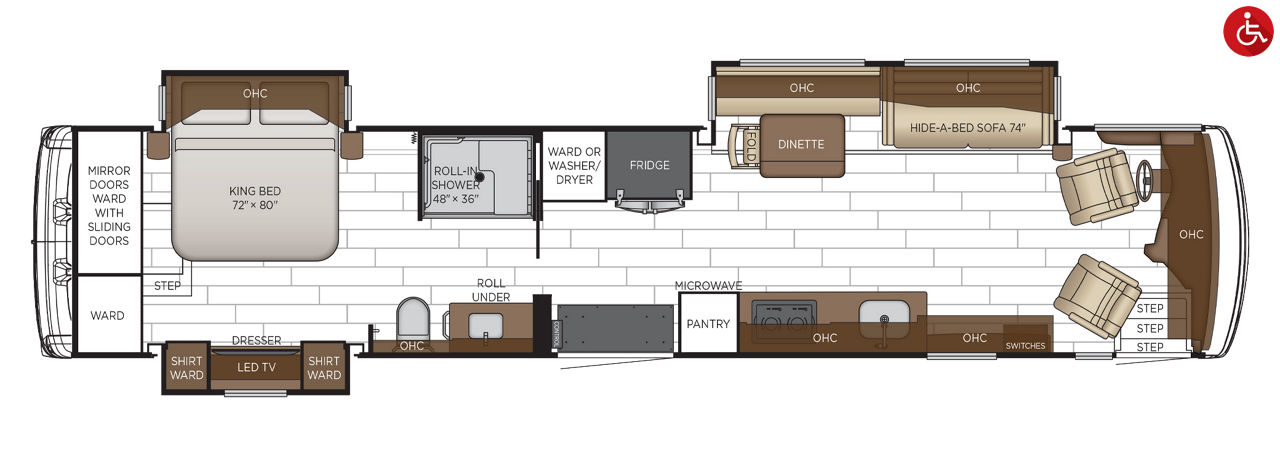

Enjoy true freedom to travel in Floor Plan 4311. Designed by the only RV manufacturer building with accessibility as a priority, this innovative floorplan features lowered appliances and countertops for wheelchair users, strategically positioned functional controls at appropriate heights throughout, and enhanced bedroom space to aid in transfers. The standard BraunAbility lift makes entry and exit easier, while the coach's thoughtful design allows wheelchair navigation from front to back, even with the slides closed.
Dutch Star Floor Plan
4311
| Spartan | |
|---|---|
| Engine Brand | Cummins |
| Engine Model | L |
| Engine HP | 450 |
| Engine Torque Rating | 1250 |
| Engine Disp. (In Liters) | 8.9 |
| Xmission Brand | Allison |
| Xmission Speeds | 6 |
| Xmission Model | 3000MH |
| Axle Ratio | 4.88 |
| Fuel Cap. | 150 |
| DEF Tank Cap. | 15 |
| Wheel Base | 288+TAG |
| Tire Brand | Michelin |
| Rear Hitch Rating Flat | 15000 |
| Rear Hitch Rating Trailer | 15000 |
| Rear Hitch Rating Vertical | 1500 |
| Wheel Cut Angle Front | 55 |
| Wheel Cut Angle Tag Axle | 9 |
| Front GAWR | 20000 |
| Rear GAWR | 20000 |
| Tag GAWR | 12000 |
| GVWR | 52000 |
| GCWR | 67000 |
| APP. UVW | 37850 |
| APP. NCC | 14150 |
| Freightliner | |
|---|---|
| Engine Brand | Cummins |
| Engine Model | L |
| Engine HP | 450 |
| Engine Torque Rating | 1250 |
| Engine Disp. (In Liters) | 8.9 |
| Xmission Brand | Allison |
| Xmission Speeds | 6 |
| Xmission Model | 3000MH |
| Axle Ratio | 4.78 |
| Fuel Cap. | 150 |
| DEF Tank Cap. | 15 |
| Wheel Base | 288+TAG |
| Tire Brand | Michelin |
| Rear Hitch Rating Flat | 15000 |
| Rear Hitch Rating Trailer | 15000 |
| Rear Hitch Rating Vertical | 1500 |
| Wheel Cut Angle Front | 52 |
| Wheel Cut Angle Tag Axle | 12 |
| Front GAWR | 19000 |
| Rear GAWR | 20000 |
| Tag GAWR | 12000 |
| GVWR | 51000 |
| GCWR | 66000 |
| APP. UVW | 38200 |
| APP. NCC | 12800 |
| Length | 43FT 09IN |
| Width | 101.5 |
| Height | 13FT 01IN |
| Interior Width | 95.5 |
| Interior Height | 83 |
| Grey | 75 |
| Sewage | 55 |
| Water | 105 |
| Propane | 0 |
| Furnace | 50000 |
| Water Heater | 0 |
| # of House Batteries (Standard) | 8 |
| Total House Battery Amp Hour (Standard) | 800 |
