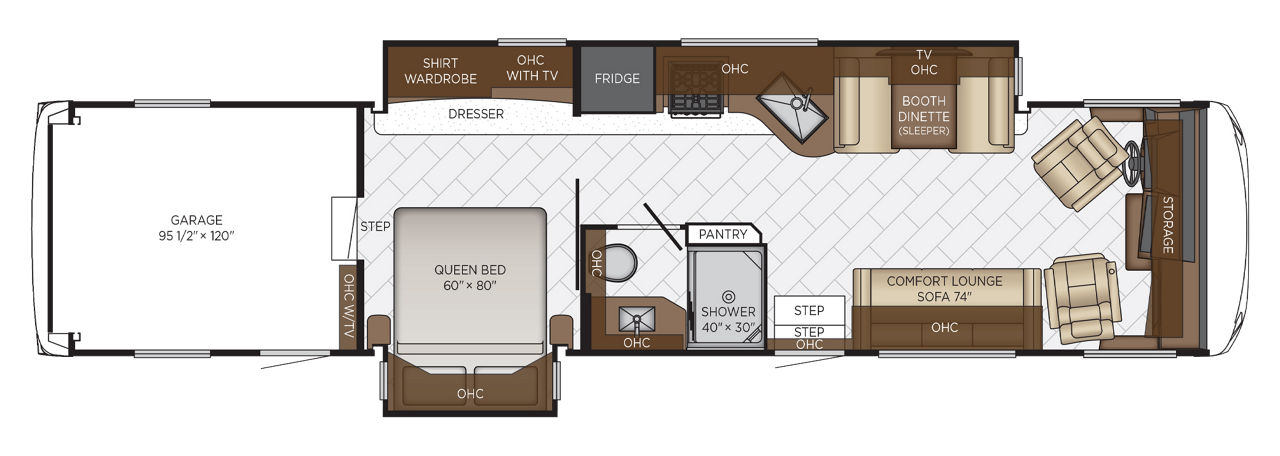

Canyon Star Floor Plan

3947

Embrace true versatility in Floor Plan 3947. The generous 95½" x 120" garage area provides ample space for motorcycles, ATVs, or your complete workshop setup, while optional drop-down bunks transform this same space into comfortable sleeping quarters when you've reached your destination. An optional garage rear door ramp with a hump can also function as a deck, with a patio awning and lights. The full midship bath offers convenient access from both living and garage areas, while the spacious full-wall slide on the off-door side creates an open, flowing living environment. The private main bedroom featuring a queen-size bed becomes your personal retreat after a day of adventures, completing a floor plan designed for those who refuse to choose between comfort and utility.

Freightliner
Engine Brand Cummins
Engine HP 340
Engine Torque Rating 700
Engine Disp. (In Liters) 6.7
Xmission Brand Allison
Xmission Speeds 5
Xmission Model 2500 MH Auto
Axle Ratio 5.13
Fuel Cap. 80
DEF Tank Cap. 10
Wheel Base 274
Tire Brand Michelin
Rear Hitch Rating Flat 6000
Rear Hitch Rating Trailer 6000
Rear Hitch Rating Vertical 600
Wheel Cut Angle Front 53
Wheel Cut Angle Tag Axle 0
Front GAWR 12000
Rear GAWR 20000
Tag GAWR 0
GVWR 32000
GCWR 33000
APP. UVW 25950
APP. NCC 6050
Length 39FT 11IN
Width 101.5
Height 12FT 11IN
Interior Width 95.5
Interior Height 84
Grey 60
Sewage 40
Water 75
Propane 25
Furnace 35000
Water Heater 0
# of House Batteries (Standard) 6
Total House Battery Amp Hour (Standard) 600
