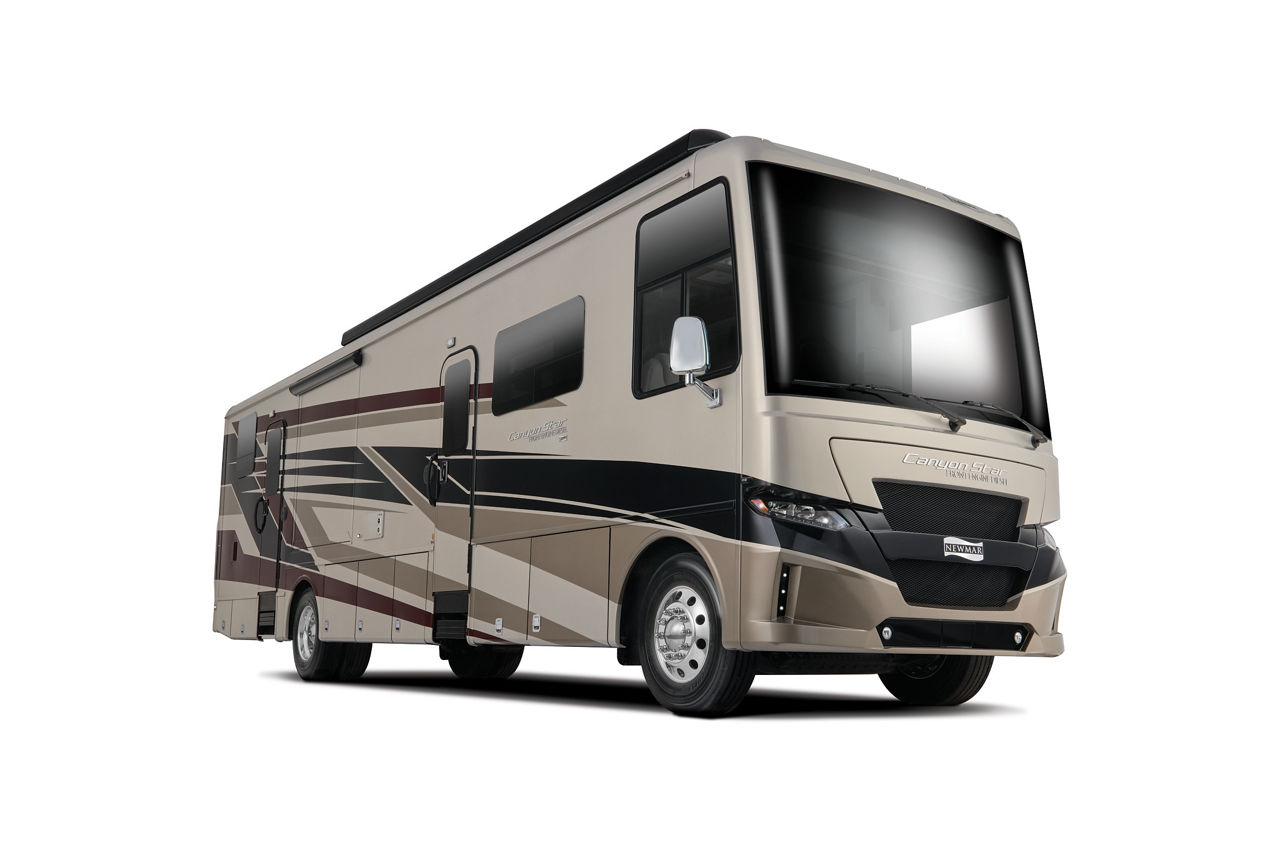

Break boundaries with the 2026 Canyon Star, the industry's only Class A front-engine diesel toy hauler. See its features below.
*For select features, check with dealership on floor plan availability
Model Features
Canyon Star
| STANDARD |
|---|
| 16" On-Center Aluminum Frame Sidewalls & Roof Construction |
| Gelcoated Fiberglass Exterior Sidewalls, Front & Rear Caps |
| One-Piece Molded Fiberglass Roof |
| Polar Pak R19 Batten Insulation In Roof |
| Slideout Automatic Mechanical Lock Arms - Scissor Style |
| STANDARD |
|---|
| Anti-Lock Braking System |
| Cruise Control |
| Dash Panel Optiview - Freightliner® |
| Glass Dash Instrument Panel |
| Freightliner Custom Chassis®, 340HP Front Engine Diesel, 274" Wheel Base |
| Tilt and Telescopic Steering Wheel |
| Aluminum Wheels |
| OPTIONAL |
|---|
| Freightliner Custom Chassis®, 340HP Front Engine Diesel, 274" Wheel Base, California Compliance |
| STANDARD |
|---|
| Armless Apex Dual Stage Awning With Strip Lighting |
| Fan-Tastic® Vent With Rain Sensor In Kitchen, Bathroom & Garage Area |
| Power Screen For Rear Garage Cargo Door |
| Skylight Above Shower |
| Slideout Covers |
| Frameless Double-Pane Tinted Safety-Glass Windows |
| One-Piece Tinted Windshield |
| OPTIONAL |
|---|
| Charcoal Tweed Awning - Must Be Ordered With Option B005 Special Order Exterior Graphics |
| Hogan Sparrow Awning - Must Be Ordered With Option B005 Special Order Exterior Graphics |
| Power Window For Driver |
| STANDARD |
|---|
| Two 15K BTU Air Heat Pump Conditioners In Main House Area, One 13.5K BTU Heat Pump Air Conditioner In Garage |
| Dash Heater & Air Conditioner |
| Defrost Fans Built Into Front Overhead |
| Driver & Passenger Dash Overhead Ventilation System |
| Propane Gas Furnace With Ducted Heat |
| STANDARD |
|---|
| Accent Lights In Slideout Fascia Trim |
| Automatic Generator Start On Low Battery Or Temperature Setting |
| Battery Disconnect Switch For House Battery |
| Cable TV Connection |
| Dash Radio, Cameras And Monitors To Power Up From Both House Batteries & Ignition |
| Daytime Running Lights |
| Drain Lift Pump |
| 50 Amp Electrical Service With Flexible Cord And Automatic Transfer Switch |
| Emergency Engine Start Switch |
| Energy Management System |
| Fog Lights |
| Six 6V House Batteries |
| Interior Courtesy Lights |
| 2000W Tru Sine Inverter with CPAP Prep |
| LED Light On Awning |
| LED Lights In Ceiling |
| Lights In Exterior Storage Compartments, Controlled By An Interior Master Switch |
| Lights In Wardrobes |
| Multiplex Lighting Control System |
| 10.1" Multiplex Monitor System In Center Of Coach with Interior Lighting & HVAC Controls |
| Newmar App |
| 8.0 kW Cummins Onan® Diesel Quiet Series Generator |
| 12V Recept Auxiliary On Dashboard |
| Slideout Switch Manually Operated Hold To Run |
| 10W Solar Panel To Charge Chassis Battery |
| Transfer Switch With Surge Protector |
| USB Outlet At Dash For Driver Use |
| USB Outlet At Passenger Seat Area |
| OPTIONAL |
|---|
| Four 120W Flexible Solar Panels On Roof |
| Solar Prep With 6 Gauge Wire Ran From Roof To First Storage Compartment |
| STANDARD |
|---|
| Demand Water System |
| Exterior Shower Located On Off-Door Side |
| Sewage Holding Tank Rinse |
| Fiberglass Surround Shower With Shower Door |
| Dometic® 321 China Bowl |
| Water Filter For Entire Unit |
| Water Heater Bypass System |
| Truma AquaGo® Instant Continuous Flow Water Heater |
| OPTIONAL |
|---|
| Fold-Down Shower Seat |
| STANDARD |
|---|
| Concealed Cabinet Door Hinges |
| Extended Rotation Concealed Cabinet Door Hinges For Washer and Dryer |
| Soft-Close Cabinet Drawers |
| Cabinet Drawers With Full Extension Ball Bearing Guides |
| Flush Cooktop Cover, Matching Countertop Material |
| Polished Solid-Surface Countertop In Bathroom And Bedroom |
| Polished Solid-Surface Countertop In Kitchen, Undermounted Sink & Sink Covers |
| Williamsburg Sleeper Booth Dinette |
| Drawers Underneath Dinette Booth Seats |
| Driver & Passenger Seats With Six-Way Power |
| Lifts On Bed Top |
| Plush Pillow Top Mattress |
| Molded Silverware Divider Tray |
| Pullout Pantry Shelves |
| Passenger Seat Tablet Holder |
| Passenger Seat With Manual Foot Rest |
| Williamsburg Sofa And Front Seats |
| Dusk Maple Cabinets - Suede Finish |
| OPTIONAL |
|---|
| Electric Lift Bunk Beds With Seating, Pedestal Table & Removable Floor Rug In 10' Garage |
| Chiffon Maple Cabinets - Suede Finish |
| Cove Glazed Maple Cabinets - Suede Finish |
| Mesa Maple Cabinets - Suede Finish |
| Two-Tone Chiffon/Cove Glazed Maple Cabinets - Suede Finish |
| Two-Tone Chiffon/Dusk Maple Cabinets - Suede Finish |
| Two-Tone Chiffon/Mesa Maple Cabinets - Suede Finish |
| Euro Booth Dinette |
| Chestnut Glazed Maple Hardwood Cabinets - Suede Finish |
| Sable Maple Hardwood Cabinets - Suede Finish |
| Sedona Maple Hardwood Cabinets - Suede Finish |
| Summit Maple Hardwood Cabinets - Suede Finish |
| Two-Tone Summit/Chestnut Glazed Maple Hardwood Cabinets - Suede Finish |
| Two-Tone Summit/Sable Maple Hardwood Cabinets - Suede Finish |
| Two-Tone Summit/Sedona Maple Hardwood Cabinets - Suede Finish |
| Air R5 Square Corner Mattress |
| 74" Theater Seating Powered) With Reading Lights |
| STANDARD |
|---|
| 110V Heat Pads For Holding Tanks |
| 30" Stainless Steel Microwave Convection With Air Fryer Feature with Three-Burner Cooktop with Piezzo Ignition |
| 10 Cu. Ft. Norcold® Refrigerator |
| OPTIONAL |
|---|
| Central Vacuum With Tool Kit |
| Two-Burner Induction Cooktop Replaces Standard Cooktop |
| Dishwasher Under Cooktop |
| 11 Cu. Ft. Whirlpool® Refrigerator |
| 11 Cu. Ft. Whirlpool® Refrigerator with Ice Maker |
| Washer and Dryer Prep In Garage with Extra Grey Tank |
| Stacked Two-Piece Splendide® Washer and Dryer In Garage with Extra Grey Tank |
| STANDARD |
|---|
| Auto Motion Manual Double Roller Shades On Windows (Not On Garage Windows) |
| Auto Motion Power Shade At Windshield & Manual Shades At Driver & Passenger Side Windows |
| Fitted Non-Quilted Bedspread & Accent Pillow |
| Color-Coordinated ABS Dash Panel |
| Decorative Wall Art |
| Interior Passage Inlayed Six Panel Design Doors |
| Diamond Tread Rubber Garage Floor |
| Interior Assist Handle At Main Entry Door |
| Padded Vinyl Ceiling Panels |
| Shoe Storage Located In Entrance Door Step Compartment |
| Hardwood Slideout Fascia |
| Tie Down Track In Garage Floor |
| Vinyl Plank Floor In Kitchen, Bathroom, Bedroom & Living Areas |
| Wastebasket In Kitchen Base Under Sink |
| Integrated Window Blind System On Entry Door |
| Woven Material On Slideout Floors |
| OPTIONAL |
|---|
| Sherbrooke Interior Decor |
| Capilano Interior Decor |
| Excelsior Interior Decor |
| Two Wheel Chocks For Garage Area |
| STANDARD |
|---|
| Side View Cameras Displayed Onto Rear View Monitor Screen |
| Dash Radio With 180W Harman/JBL Sound System |
| AM/FM/DVD Exterior Radio With Two Speakers Inside Garage Area & Two Speakers Outside |
| 10 BC Fire Extinguisher In Garage |
| 10 BC Fire Extinguisher, Carbon Monoxide, Smoke Detectors |
| High Definition Component Wiring |
| Bluetooth Microphone For Dash Radio |
| Rear View Color Monitor System With Audio |
| Satellite Dish Prep On Roof |
| Bose® Sound System Soundbar |
| TV Jack And 110V Recept In Door-Side Exterior Storage Compartment |
| 32" Samsung® LED TV In Garage Area |
| Samsung® LED TV In Living & Bedroom Areas |
| Winegard® Digital Crank-Up TV Antenna |
| Xite Dash Radio with Apple CarPlay®, 9" Dual Monitors with Nav-N-Go Navigation System |
| OPTIONAL |
|---|
| Exterior Entertainment Center In Storage Compartment with 43" Samsung® 4K LED TV & Bose® Soundbar |
| SiriusXM® Radio Capability with Antenna (Does Not Include Monthly Subscription) |
| Starlink Internet System |
| 43" Samsung® LED TV In Front Overhead |
| Denali/Spruce WiFiRanger LTE |
| WiFi System Everest with Aspen Interior Router |
| Winegard® Automatic Dome Satellite Dish - For DISH® Standard/HD, DIRECTV® Standard & Bell Canada (Rts-20B) |
| Winegard® Automatic Open Face Satellite Dish - For DISH® HD & Bell HD TV (SK2-100) with Auto Stow |
| Winegard® Automatic Open Face SWM Satellite Dish - For DIRECTV® Standard/HD (SK2-300) with Auto Stow |
| Winegard® In Motion Dome Satellite Dish - For DISH® Standard/HD, DIRECTV® Standard & Bell Canada (RtI-20B) |
| Winegard® Rayzar Automatic Digital TV Antenna |
