Bay Star Floor Plan

3609

Bay Star Floor Plan 3609 stands out as an iconic bath-and-a-half design that delivers a uniquely spacious and refined living experience. Its kitchen layout anchors the coach, while a midship TV positioned across from the sofa, complemented by a dry bar and optional fireplace, allows for effortless hosting and relaxation. Ideal for tailgaters, national park enthusiasts, and those who value thoughtful amenities.

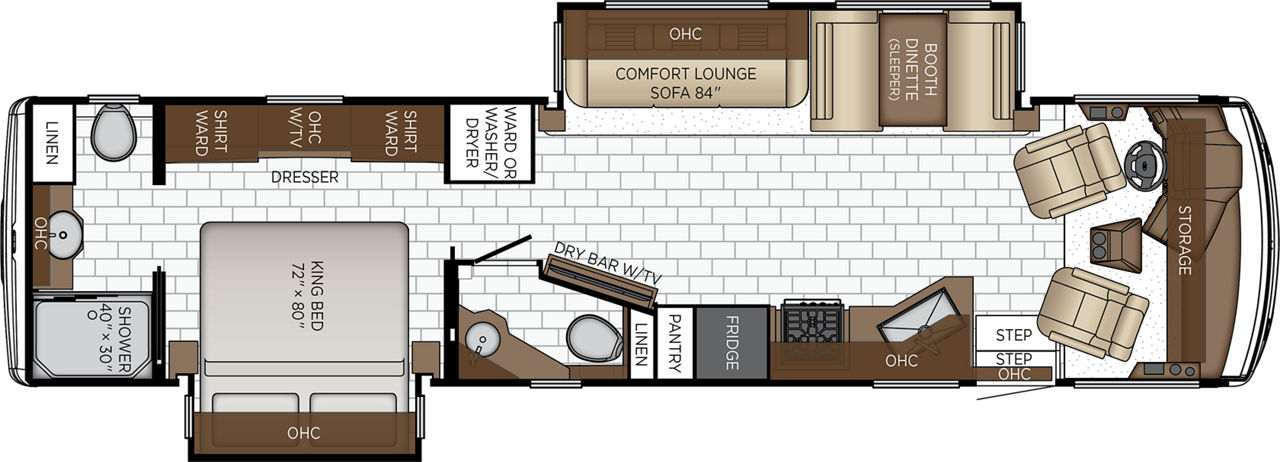

2027 Bay Star 3609 Floorplan
Ford
Engine Brand Ford
Engine HP 335
Engine Torque Rating 468
Engine Disp. (In Liters) 7.3
Transmission Brand Ford
Transmission Speeds 6
Transmission Model Torqshift 6 R140
Axle Ratio 6.14
Fuel Cap. 80
DEF Tank Cap. 0
Wheel Base 242
Tire Brand Michelin
Rear Hitch Rating Flat 5000
Rear Hitch Rating Trailer 5000
Rear Hitch Rating Vertical 500
Wheel Cut Angle Front 0.0
Wheel Cut Angle Tag Axle 0.0
Front GAWR 9000
Rear GAWR 17500
Tag GAWR 0
GVWR 26000
GCWR 30000
APP. UVW 22700
APP. NCC 3300
Width 101.5
Interior Width 95.5
Interior Height 84
Grey 60.00
Sewage 40.00
Water 75.00
Propane 25.00
Furnace 35000
Water Heater 6.00
# of House Batteries (Standard) 6
Total House Battery Amp Hour (Standard) 600
No. of Slides 2
Sleeps Up To 7
Bed Size King
No. of Baths 1.5
Bunks No
Drop Down Bunks Optional
Handicap Accessible No
Washer/Dryer Optional
Fireplace Optional
Exterior Entertainment Optional
Exterior Freezer No
Artisan Series Custom Paint Process No

Features and specifications are subject to change without notice. Please consult your dealer for the most current information.
