The 2020 Ventana is fitted with a cargo liner, 5/8” floor decking and 5/8” bead foam. Lengths, heights, widths, and dry weights are approximate. Weight will vary based on optional equipment added to the base weights listed below. Specifications are supplied by each chassis manufacturer.
Ventana is supported by our ultra-durable STAR Foundation for a quieter ride. A Cummins® diesel engine delivers up to 400 horsepower, and Comfort Drive™ adaptive steering comes standard.

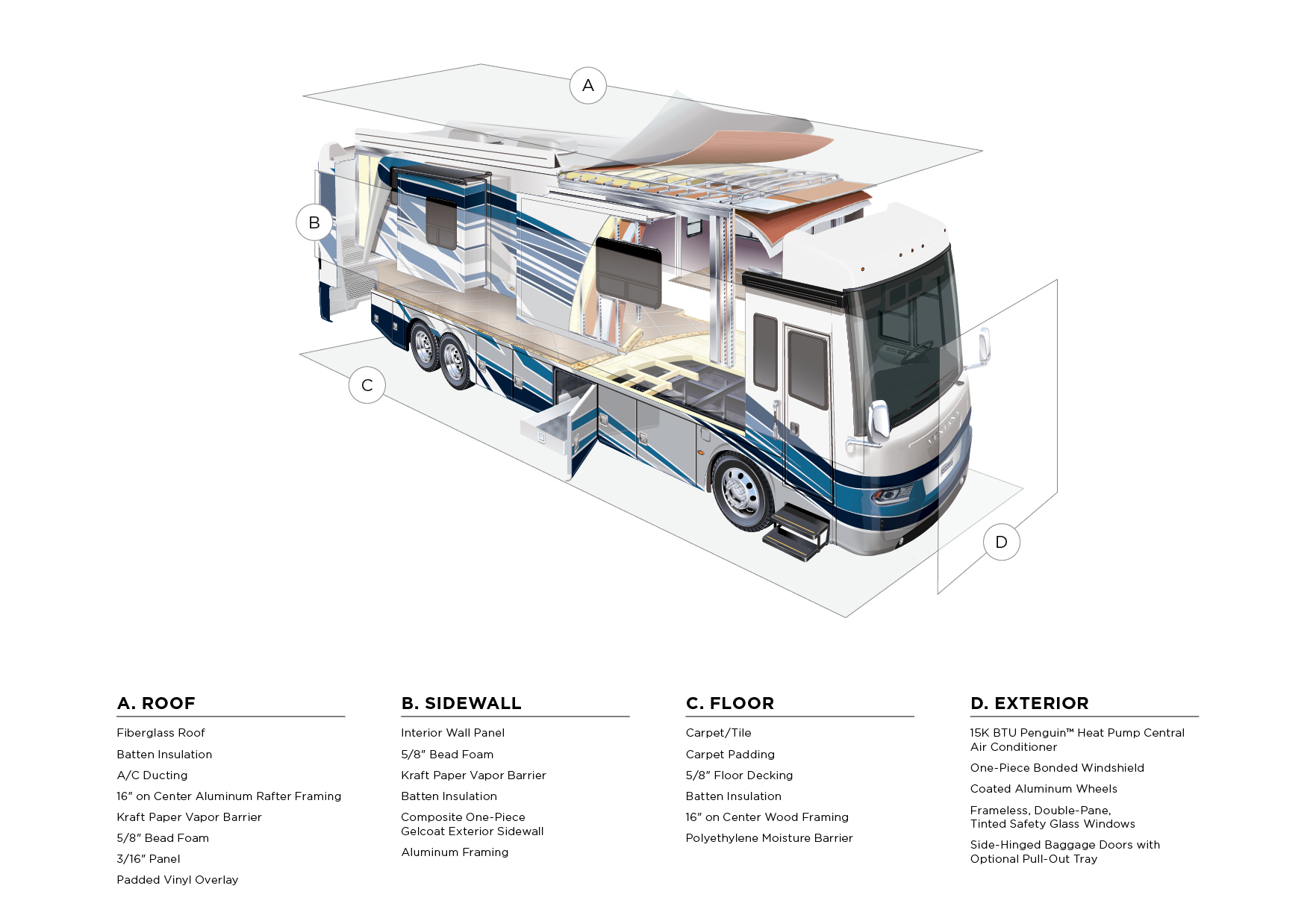

VENTANA CONSTRUCTION
Like a fine home, the 2020 Ventana is framed 16 inches on center, and is covered by a fiberglass roof with walkable decking and an integrated gutter rail. Click or tap for more details.
Chassis: Freightliner® XCR or Spartan® K2, both with tag axle
(37-foot floor plans only available on a Freightliner® chassis. Tag axle on 40- and 43-foot floor plans only.)
| Floor Plan | Length | Width | Height | Int. Width | Int. Height | Grey | Sewage | Water | Propane | Furnace | Water Heater | # of House Batteries (Standard) | Total House Battery Amp Hours (Standard) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3407 | 34' 10" | 101.5" | 12' 10" | 95.5" | 83" | 65 gal. | 45 gal. | 105 gal. | 32 gal. | 35000 btu | 10 gal. | 4 | 400 |
| 3412 | 34' 10" | 101.5" | 12' 10" | 95.5" | 83" | 65 gal. | 45 gal. | 105 gal. | 32 gal. | 35000 btu | 10 gal. | 4 | 400 |
| 3426 | 34' 10" | 101.5" | 12' 10" | 95.5" | 83" | 65 gal. | 45 gal. | 105 gal. | 32 gal. | 35000 btu | 10 gal. | 4 | 400 |
| 3709 | 37' 10" | 101.5" | 12' 10" | 95.5" | 83" | 65 gal. | 45 gal. | 105 gal. | 32 gal. | 54000 btu | 10 gal. | 4 | 400 |
| 3717 | 37' 10" | 101.5" | 12' 10" | 95.5" | 83" | 65 gal. | 45 gal. | 105 gal. | 32 gal. | 54000 btu | 10 gal. | 4 | 400 |
| 4002 | 40' 10" | 101.5" | 12' 11" | 95.5" | 83" | 65 gal. | 45 gal. | 105 gal. | 32 gal. | 54000 btu | 10 gal. | 4 | 400 |
| 4037 | 40' 10" | 101.5" | 12' 11" | 95.5" | 83" | 65 gal. | 45 gal. | 105 gal. | 32 gal. | 54000 btu | 10 gal. | 4 | 400 |
| 4054 | 40' 10" | 101.5" | 12' 11" | 95.5" | 83" | 65 gal. | 45 gal. | 105 gal. | 32 gal. | 54000 btu | 10 gal. | 4 | 400 |
| 4311 | 43' 10" | 101.5" | 12' 11" | 95.5" | 83" | 65 gal. | 45 gal. | 105 gal. | 32 gal. | 50000 btu | 0 gal. | 4 | 400 |
| 4326 | 43' 10" | 101.5" | 12' 11" | 95.5" | 83" | 65 gal. | 45 gal. | 105 gal. | 32 gal. | 50000 btu | 0 gal. | 4 | 400 |
| 4348 | 43' 10" | 101.5" | 12' 11" | 95.5" | 83" | 65 gal. | 45 gal. | 105 gal. | 32 gal. | 50000 btu | 0 gal. | 4 | 400 |
| 4362 | 43' 10" | 101.5" | 12' 11" | 95.5" | 83" | 65 gal. | 45 gal. | 105 gal. | 32 gal. | 50000 btu | 0 gal. | 4 | 400 |
| 4369 | 43' 10" | 101.5" | 12' 11" | 95.5" | 83" | 65 gal. | 45 gal. | 105 gal. | 32 gal. | 50000 btu | 0 gal. | 4 | 400 |
| Floor Plan | Year | Brand | Type | Floor Plan | Engine Brand | Engine Model | Engine HP | Engine Torque Rating | Engine Displ. | Engine Displ. UOM | Axle Ratio | Xmission Brand | Xmission Model | Xmission Speeds | Fuel Cap. | DEF Tank Cap. | Wheel Base | Tire Brand | Rear Hitch Rating Flat | Rear Hitch Rating Trailer | Rear Hitch Rating Vertical | Wheel Cut Angle Front | Wheel Cut Angle Tag Axle | Front GAWR | Rear GAWR | Tag GAWR | GVWR | GCWR | APP. UVW | APP. NCC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3407 | 2020 | VT | DP | 3407 | Cummins | B | 360 | 800 | 6.7 | Liters | 4.78 | Allison | 3000 MH | 6 | 100 | 10 | 206 | Michelin | 10000 | 5000 | 500 | 55 | n/a | 12400 | 23000 | n/a | 35400 | 45400 | 28900 | 6500 |
| 3412 | 2020 | VT | DP | 3412 | Cummins | B | 360 | 800 | 6.7 | Liters | 4.78 | Allison | 3000 MH | 6 | 100 | 10 | 206 | Michelin | 10000 | 5000 | 500 | 55 | n/a | 12400 | 23000 | n/a | 35400 | 45400 | 29300 | 6100 |
| 3426 | 2020 | VT | DP | 3426 | Cummins | B | 360 | 800 | 6.7 | Liters | 4.78 | Allison | 3000 MH | 6 | 100 | 10 | 206 | Michelin | 10000 | 5000 | 500 | 55 | n/a | 12400 | 23000 | n/a | 35400 | 45400 | 29000 | 6400 |
| 3709 | 2020 | VT | DP | 3709 | Cummins | B | 360 | 800 | 6.7 | Liters | 4.78 | Allison | 3000 MH | 6 | 100 | 10 | 242 | Michelin | 10000 | 5000 | 500 | 55 | n/a | 13500 | 24000 | n/a | 37500 | 47500 | 30900 | 6600 |
| 3717 | 2020 | VT | DP | 3717 | Cummins | B | 360 | 800 | 6.7 | Liters | 4.78 | Allison | 3000 MH | 6 | 100 | 10 | 242 | Michelin | 10000 | 5000 | 500 | 55 | n/a | 13500 | 24000 | n/a | 37500 | 47500 | 29800 | 7700 |
| 4002 | 2020 | VT | DP | 4002 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.78 | Allison | 3000 MH | 6 | 100 | 13 | 245+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 12 | 14000 | 20000 | 10000 | 44000 | 59000 | 34600 | 9400 |
| 4037 | 2020 | VT | DP | 4037 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.78 | Allison | 3000 MH | 6 | 100 | 13 | 245+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 12 | 14000 | 20000 | 10000 | 44000 | 59000 | 35800 | 8200 |
| 4054 | 2020 | VT | DP | 4054 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.88 | Allison | 3000 MH | 6 | 100 | 13 | 245+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 12 | 14000 | 20000 | 10000 | 44000 | 59000 | 35600 | 8400 |
| 4311 | 2020 | VT | DP | 4311 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.78 | Allison | 3000 MH | 6 | 100 | 13 | 281+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 12 | 14700 | 20000 | 10000 | 44700 | 59700 | 34700 | 10000 |
| 4326 | 2020 | VT | DP | 4326 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.78 | Allison | 3000 MH | 6 | 100 | 13 | 281+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 12 | 14700 | 20000 | 10000 | 44700 | 59700 | 35300 | 9400 |
| 4348 | 2020 | VT | DP | 4348 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.78 | Allison | 3000 MH | 6 | 100 | 13 | 281+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 12 | 14700 | 20000 | 10000 | 44700 | 59700 | 35200 | 9500 |
| 4362 | 2020 | VT | DP | 4362 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.78 | Allison | 3000 MH | 6 | 100 | 13 | 281+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 12 | 14700 | 20000 | 10000 | 44700 | 59700 | 36700 | 8000 |
| 4369 | 2020 | VT | DP | 4369 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.78 | Allison | 3000 MH | 6 | 100 | 13 | 281+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 12 | 14700 | 20000 | 10000 | 44700 | 59700 | 36700 | 8000 |
| Floor Plan | Year | Brand | Type | Floor Plan | Engine Brand | Engine Model | Engine HP | Engine Torque Rating | Engine Displ. | Engine Displ. UOM | Axle Ratio | Xmission Brand | Xmission Model | Xmission Speeds | Fuel Cap. | DEF Tank Cap. | Wheel Base | Tire Brand | Rear Hitch Rating Flat | Rear Hitch Rating Trailer | Rear Hitch Rating Vertical | Wheel Cut Angle Front | Wheel Cut Angle Tag Axle | Front GAWR | Rear GAWR | Tag GAWR | GVWR | GCWR | APP. UVW | APP. NCC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4002 | 2020 | VT | DP | 4002 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.88 | Allison | 3000 MH | 6 | 100 | 10 | 245+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 8 | 14000 | 20000 | 10000 | 44000 | 59000 | 34700 | 9300 |
| 4037 | 2020 | VT | DP | 4037 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.88 | Allison | 3000 MH | 6 | 100 | 10 | 245+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 8 | 14000 | 20000 | 10000 | 44000 | 59000 | 35900 | 8100 |
| 4054 | 2020 | VT | DP | 4054 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.88 | Allison | 3000 MH | 6 | 100 | 10 | 245+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 8 | 14000 | 20000 | 10000 | 44000 | 59000 | 35600 | 8400 |
| 4311 | 2020 | VT | DP | 4311 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.88 | Allison | 3000 MH | 6 | 100 | 10 | 281+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 8 | 14600 | 20000 | 10000 | 44600 | 59600 | 34800 | 9800 |
| 4326 | 2020 | VT | DP | 4326 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.88 | Allison | 3000 MH | 6 | 100 | 10 | 281+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 8 | 14600 | 20000 | 10000 | 44600 | 59600 | 35500 | 9100 |
| 4348 | 2020 | VT | DP | 4348 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.88 | Allison | 3000 MH | 6 | 100 | 10 | 281+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 8 | 14600 | 20000 | 10000 | 44600 | 59600 | 35100 | 9500 |
| 4362 | 2020 | VT | DP | 4362 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.88 | Allison | 3000 MH | 6 | 100 | 10 | 281+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 8 | 14600 | 20000 | 10000 | 44600 | 59600 | 36800 | 7800 |
| 4369 | 2020 | VT | DP | 4369 | Cummins | L | 400 | 1250 | 8.9 | Liters | 4.88 | Allison | 3000 MH | 6 | 100 | 10 | 281+TAG | Michelin | 15000 | 15000 | 1500 | 55 | 8 | 14600 | 20000 | 10000 | 44600 | 59600 | 36800 | 7800 |
